Application

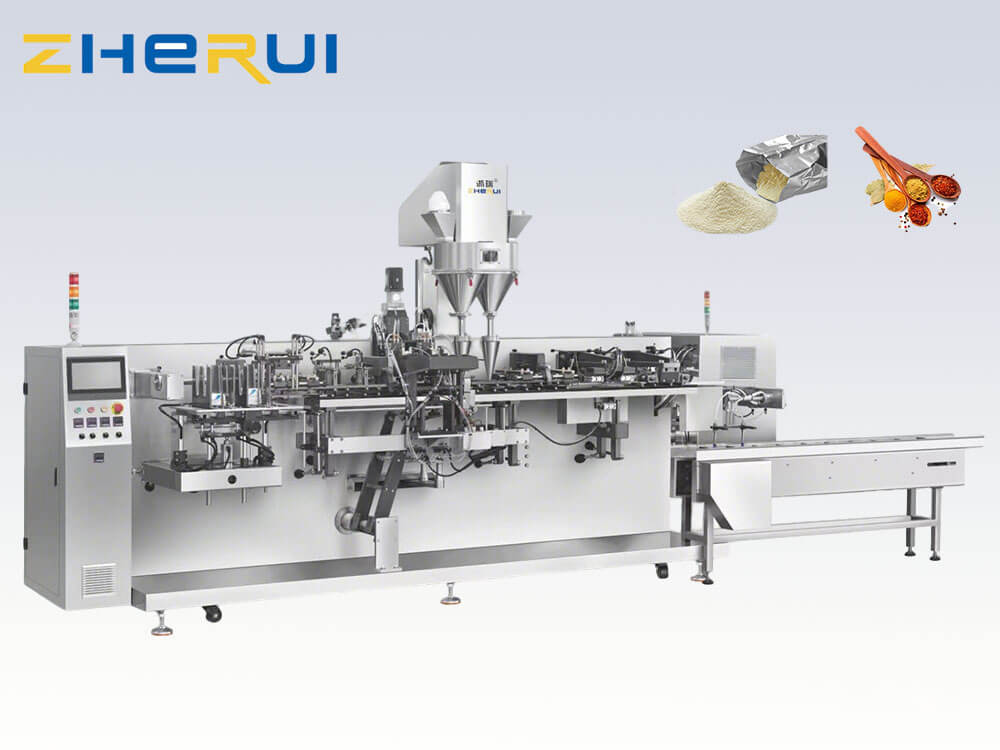

The powder horizontal premade pouch packing machine is an automated packaging device specifically designed for powder materials. It is widely used in industries such as food, chemicals, and pharmaceuticals. This equipment can efficiently and accurately complete the tasks of weighing, filling, and sealing powder materials.
Food Industry: Milk powder, flour, starch, cocoa powder
Chemical Industry: Chemical coatings, paint powder, pigments, laundry powder, chemical raw materials
Pharmaceutical Industry: Protein powder, antibiotics, vitamins, and other pharmaceutical powders
Option
Auger Filler
Vacuum Feeder
Powder Cleaner
Layout
Features
- Dual Bags
- PLC with color touch screen
- Inovance servo-drive control platform
- Pouch presence detection: No pouch = No filling or sealing
Work Process
Specifications
| Model | ZZR360 - 2 |
| Material Contact Part | Food Grade 304 |
| Speed | 70Pouches/min(depending on product) |
| Pouch Size | Max: 250×165mm(L×W); Min: 120×100mm(L×W) |
| Power Supply | 3 Phase, 380V 50HZ, 4.5KW |
| Air Pressure | 0.4 - 0.5m³/min |
| Air Consumption | 0.6-0.8 MPa |
| Machine Size | 5000×1550×2500mm |
| Weight | 2800kg |
