Application

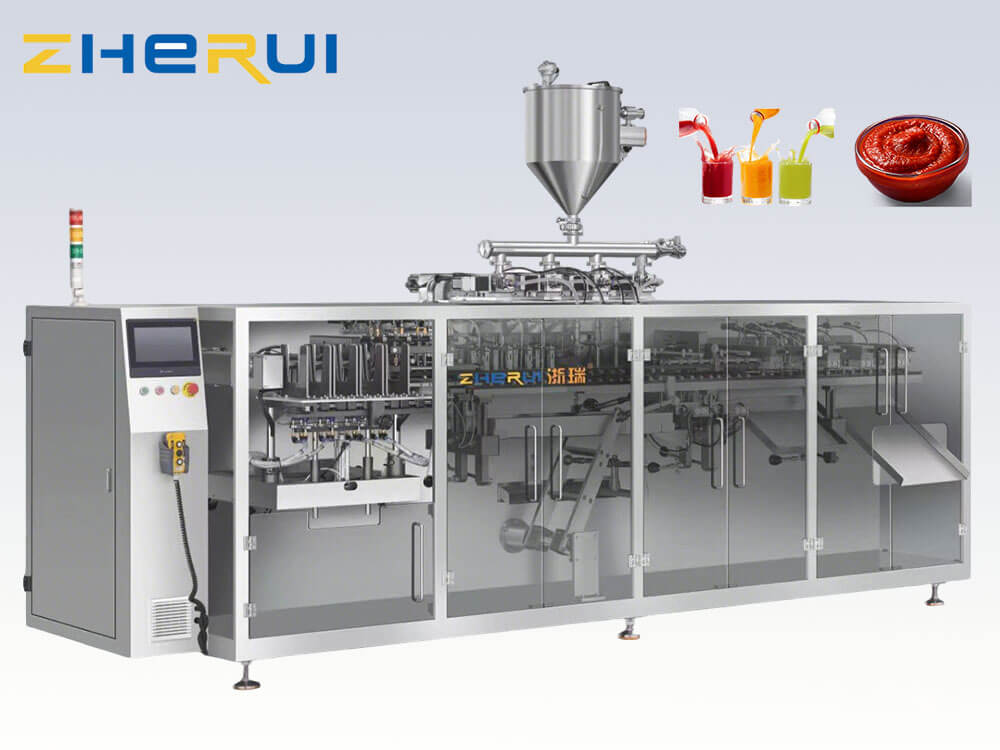

The liquid horizontal premade pouch packing machine is an efficient and precise automated packaging device. It has wide applicability and can handle liquids of various viscosities and properties, such as beverages, seasonings, and household liquids. The machine offers fast packaging speeds, accurate measurement, and strong stability. It is widely used in industries such as food and beverage, daily chemicals, and chemicals, significantly improving the packaging efficiency and quality of liquid products. It also reduces labor costs and packaging errors, bringing substantial benefits to the production and operation of businesses.
Food and Beverage Industry: Juice, tea beverages, dairy products, sauces, soup mixes
Pharmaceutical Industry: Drug solutions, disinfectants, injectables
Cosmetics Industry: Shampoo, conditioner, shower gel, facial serums
Household Chemicals Industry: Cleaners, laundry liquid, dishwashing liquid
Option

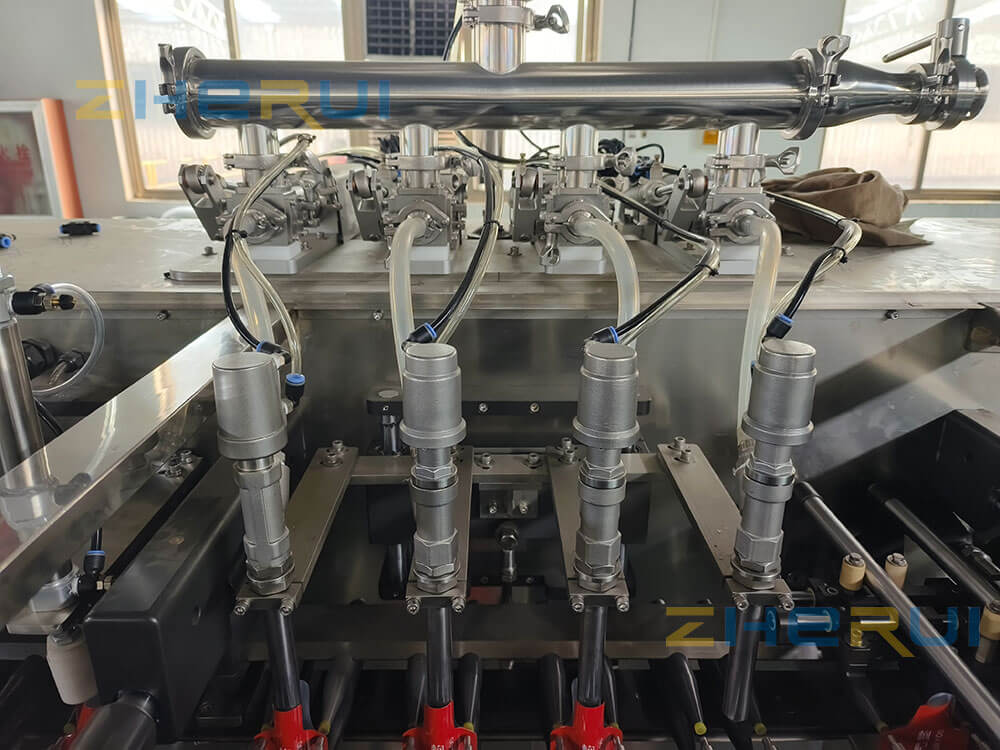

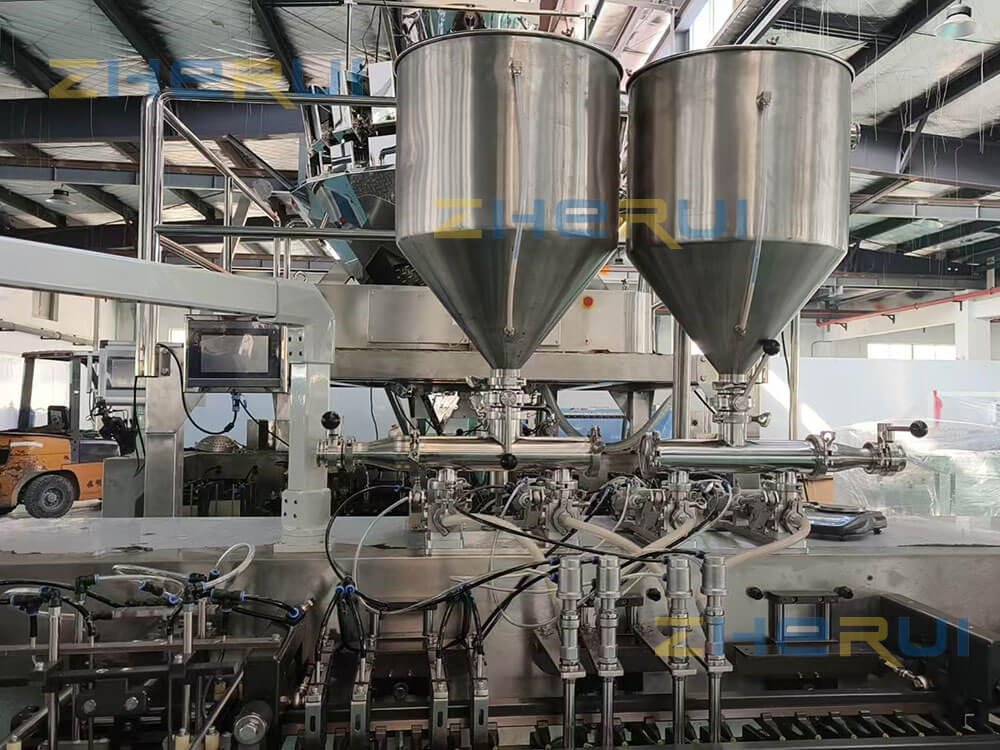

Piston Filler
Rotary Lobe Cam Pump
Layout
Work Process
Features

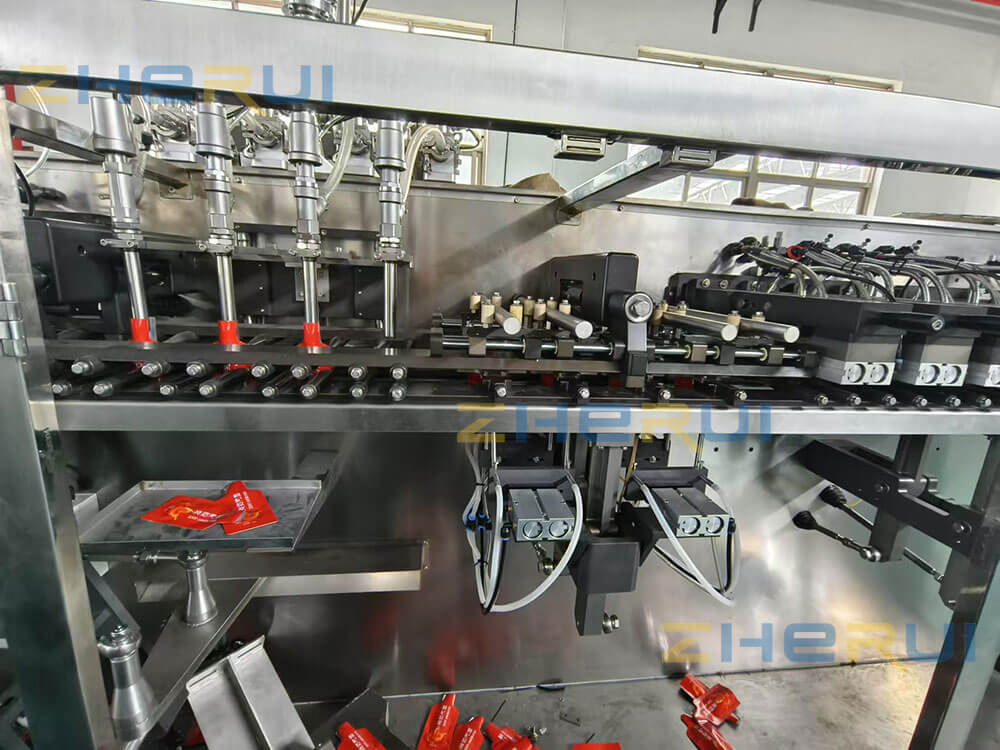

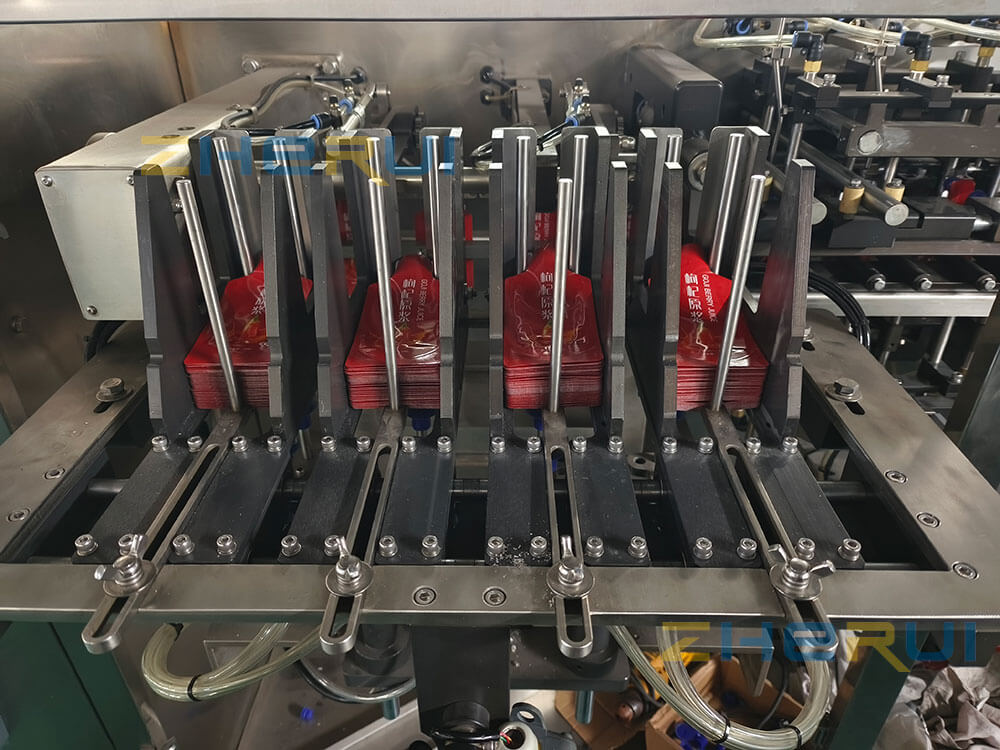

- This four-lane fill and seal machine can handle four bags at one time
- PLC with color touch screen
- Inovance servo-drive control platform
- Pouch presence detection: No pouch = No filling or sealing
Specifications
| Model | ZR480 - 4 |
| Material Contact Part | Food Grade 304 |
| Speed | 8400 - 9600Pouches/h(depending on product) |

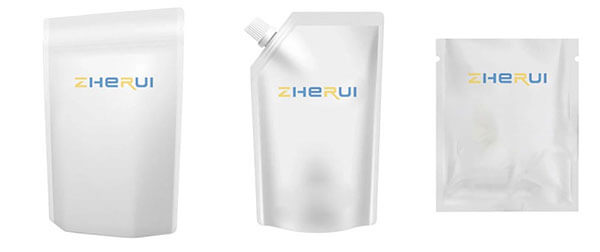

| Pouch Size | Max: 230×90mm(L×W); Min: 120×55mm(L×W) |
| Power Supply | 3 Phase, 380V 50HZ, 6KW |
| Air Pressure | 0.6-0.8 MPa |
| Air Consumption | 0.5 - 0.6m³/min |
| Machine Size | 4000×1400×1400mm |
| Weight | 2500kg |
