Application

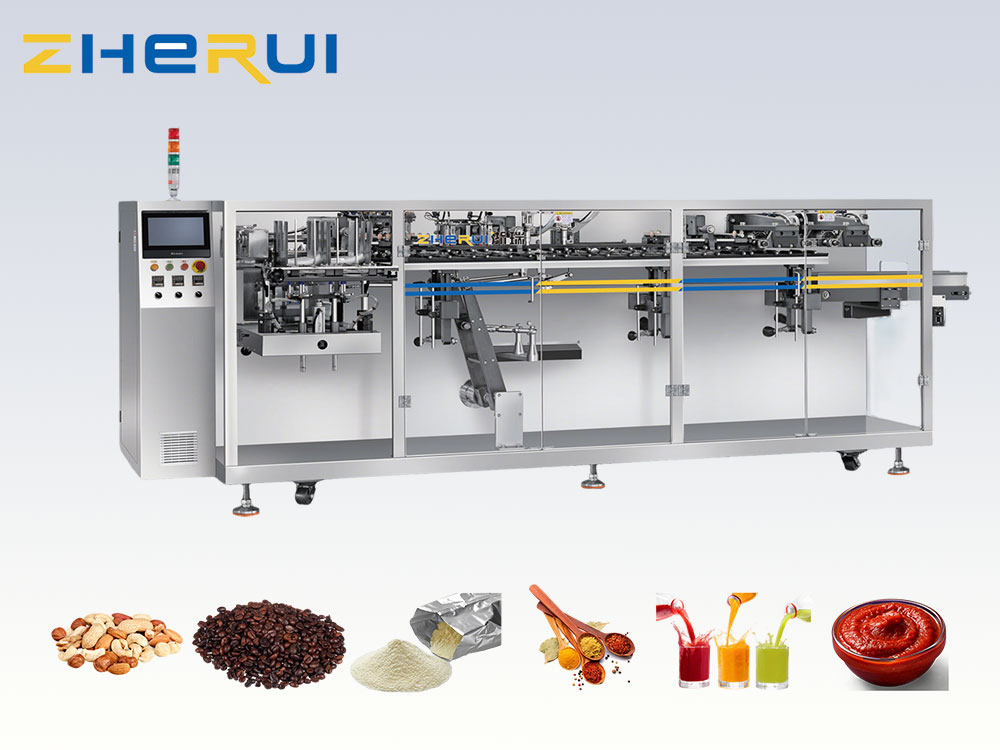

The Horizontal Premade Pouch Packing Machine can automatically complete operations such as pouch opening, filling, and sealing. It adopts a pre-made pouch packaging method, suitable for the packaging of granules, powders, liquids, and other materials. This equipment is highly automated, efficient in packaging, and easy to operate.
Food & Beverage: Snack foods, sauces, coffee, frozen products.
Pharmaceutical: Powders, tablets, medical supplies.
Cosmetics: Creams, lotions, and personal care products.
Household Products: Detergents, cleaning supplies, and more.
Option
Multihead Weigher
Auger Filler
Piston Filler
Layout
Work Process
Features
- Dual Bags

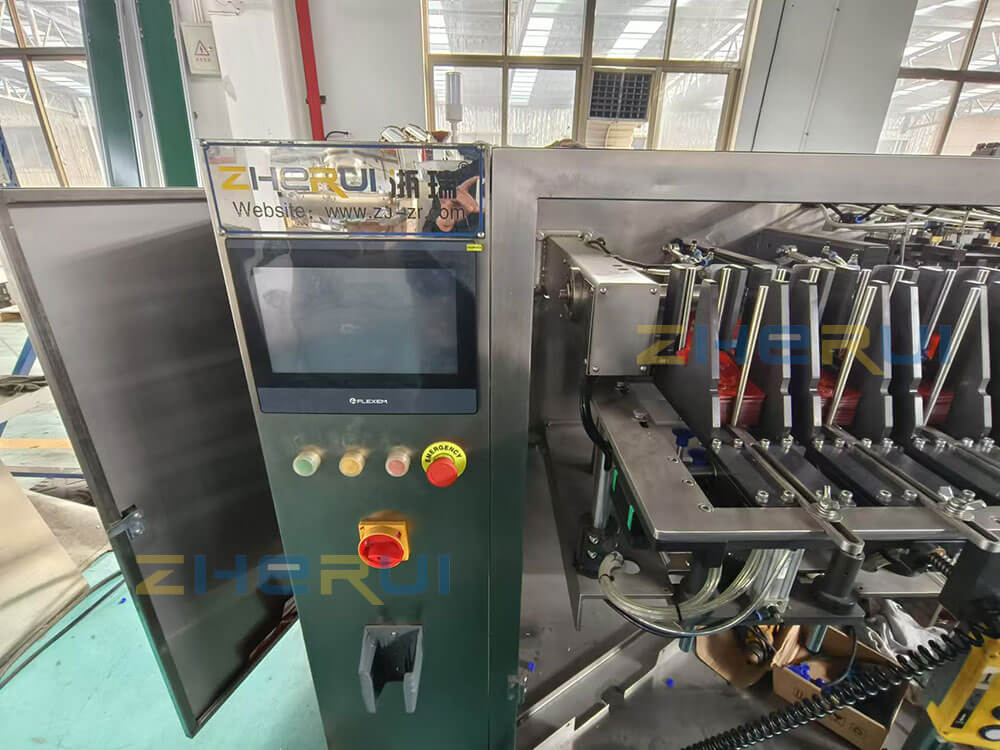

- PLC with color touch screen
- Inovance servo-drive control platform
- Pouch presence detection: No pouch = No filling or sealing
Specifications
| Model | ZR360 - 2 |
| Material Contact Part | Food Grade 304 |
| Speed | 3600 - 5400Pouches/h (depending on product) |
| Pouch Size | Max: 240×170mm(L×W); Min: 120×100mm(L×W) |
| Power Supply | 3 Phase, 380V 50HZ, 6KW |
| Air Pressure | 0.6-0.8 MPa |
| Air Consumption | 0.4 - 0.5m³/min |
| Machine Size | 3500×1400×1400mm |
| Weight | 2100kg |
